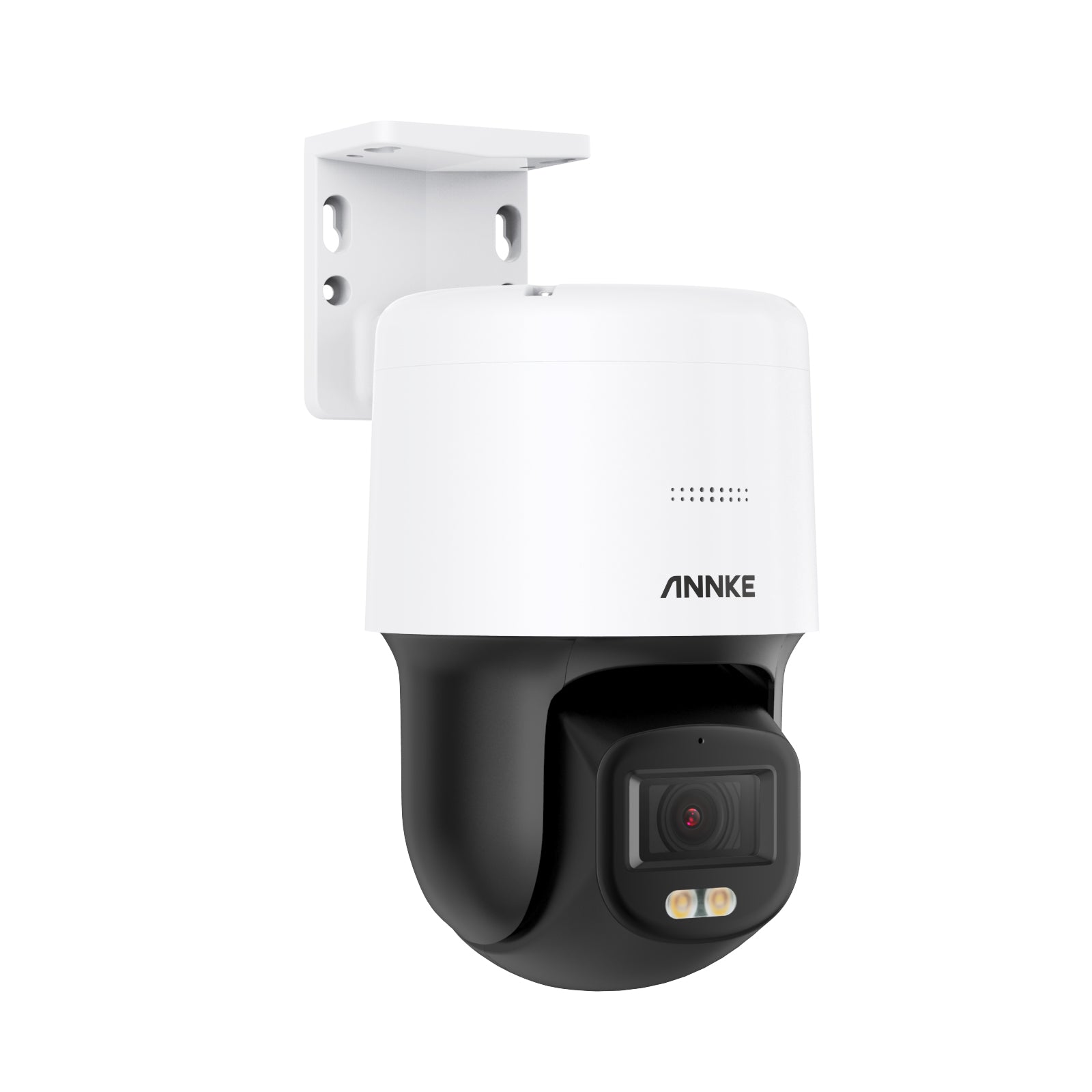

3K Fixed Outdoor PT Network Camera

3K Fixed Outdoor PT Network Camera

$129.99 MSRP
Model Number: I81EM
  • High quality imaging with 3K resolution(3072*1728)
  • Clear imaging against strong back light due to DWDR technology
  • 3D DNR technology delivers clean and sharp images
  • 340° pan & 105° tilt, covers more & sees wider
  • Built-in microphone and speaker for real-time audio security
  • Built-in SD card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Water and dust resistant IP66
    • Ask An Expert

    One stop shop

    Unbeatable pricing

    Stable delivery time

    Immediate Response

    Specification

    Download I81EM Specification

    What's in the Box
  • 1X Camera1X Mounting Screws Bag
  • 1X User manual1X Surveillance Sign
  • 1X Allen wrench1X Mounting Hole Template
  • 1X Mounting Screw Bag1X Waterproof Lid
    • Camera
    Image Sensor1/1.8"  Progressive Scan CMOS Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Main Stream50 Hz: 20fps(3072*1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
    60 Hz: 20fps(3072*1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)    		 Substream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
    Video Bit Rate32 Kbps to 8 Mbps Lens2.8 mm@F1.0
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG    		 FOVHorizontal FOV 105.7°, vertical FOV 57.3°, diagonal FOV 124.9°
    Supplement LightSmart white Light, up to 30 m Movement RangePan:0° to 340°, Tilt: -5° to 105°
    Min. Illumination24 hour color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light Lens2.8 mm@F1.0
    Pan SpeedConfigurable from 4° to 21°/s Tilt SpeedConfigurable from 4° to 19°/s
    Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps(MP2L2)/16 to 64 Kbps (AAC-LC)
    Audio Sampling Rate8 kHz/16 kHz Environment Noise FilteringYes
    Image Enhancement3D DNR,  BLC, HLC, WDDR ProtocolsIPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP,FTP
    APIOpen Network Video Interface Version 18.12 AudioBuild in microphone & speaker, support 2-way audio
    Basic EventMotion detection, video tampering alarm, exception General FunctionMirror, password protection, watermark
    Image Sensor1/1.8"  Progressive Scan CMOS
    Main Stream50 Hz: 20fps(3072*1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
    60 Hz: 20fps(3072*1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
    Video Bit Rate32 Kbps to 8 Mbps
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Supplement LightSmart white Light, up to 30 m
    Min. Illumination24 hour color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with Light
    Pan SpeedConfigurable from 4° to 21°/s
    Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC-LC/PCM
    Audio Sampling Rate8 kHz/16 kHz
    Image Enhancement3D DNR,  BLC, HLC, WDDR
    APIOpen Network Video Interface Version 18.12
    Basic EventMotion detection, video tampering alarm, exception
    Max resolution 3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Substream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
    Lens 2.8 mm@F1.0
    FOV Horizontal FOV 105.7°, vertical FOV 57.3°, diagonal FOV 124.9°
    Movement Range Pan:0° to 340°, Tilt: -5° to 105°
    Lens 2.8 mm@F1.0
    Tilt Speed Configurable from 4° to 19°/s
    Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps(MP2L2)/16 to 64 Kbps (AAC-LC)
    Environment Noise Filtering Yes
    Protocols IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP,FTP
    Audio Build in microphone & speaker, support 2-way audio
    General Function Mirror, password protection, watermark
    General
    ColorWhite & black StorageSupport MicroSD Card (up to 256 GB)
    Operating Power12 VDC ± 25%, 0.75 A, max. 9 W; PoE (802.3af), max. 10 W Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    Operating Temperature-22° to 122° F (-30° to 50° C) Indoor/OutdoorIndoor/Outdoor
    Protection LevelIP66 Weight780 g (1.7 lb.)
    Dimension162 mm × 120 mm × 234.2 mm (6.4" × 4.7" × 9.2")
